Page 9

Click the arrows to see more installation pictures.

Page 9

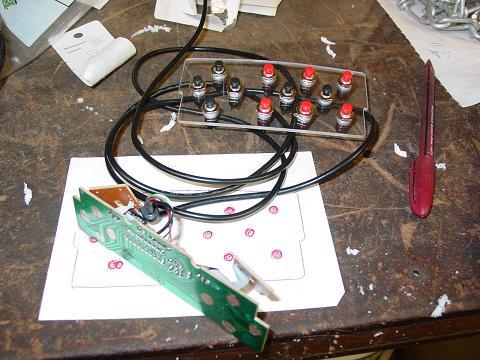

Here is the custom computer control that will fit snugly into the ashtray. (One of the perks of not smoking is you have more room for your stereo when you don't need your ashtray!) you can see the joystick stripped down to just it's circuit board which the switches from radio shack will get soldered to.







The Cat5 Network cable I used to extend the switches from the joystick circuit board in the back to the radio shack switches in the ashtray. you can also see the screen now and where it is going to go.

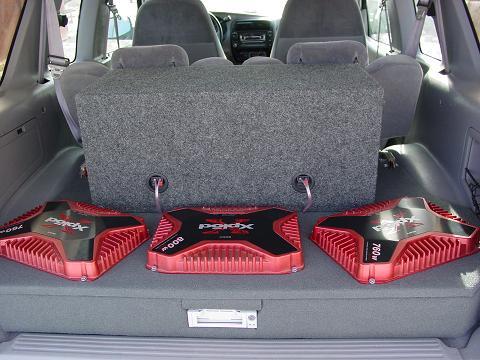

Well the back part is finished. If there was one thing that I would have done differently, it would have been to do the carpet all in one piece instead of having that little piece on the top of the hard drive. Oh well.

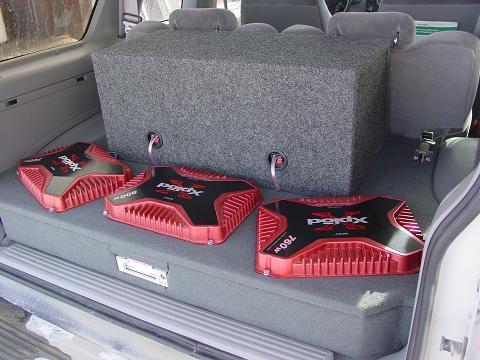

Angled shot.







Looks good!

Page 9
